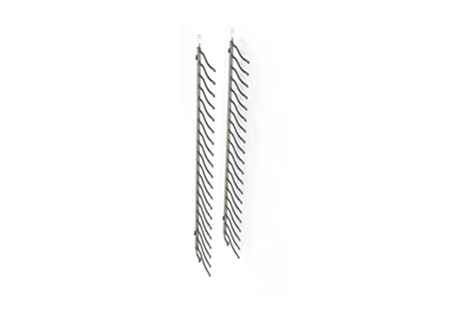

Manifold

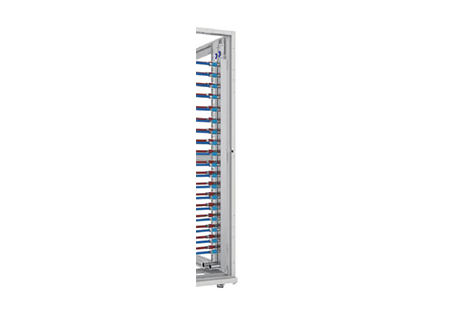

Manifold, flexible hoses and drip-less quick disconnect
couplings are included in the rack.
couplings are included in the rack.
Key Features
• Installation: Tool-less Peg Nut Hanging.
• Material: Stainless Steel 304 (Optional:316L).
• Shape: Square.
• Quick Disconnector: UǪD.
• External Connector: Tri-Clamp (Optional: Flange, Quick Connector).
• Air Purge Valve: Stainless Steel 304 (Optional:316L).
• Soft Hose: EPDM (Optional: PTFE).
• Drain Valve: SUS304, Optional.
Specifications
• Mani material stainless steel 304.
• Section size 30x30, 40x40, 50x50 mm.
• Full length 1870, 2000, 2130 mm.
• Tri-clamp 1 inch, 1-1/4 inch, 1-1/2 inch.
• Num. of branches 12/18/24, mini. spacing 1U.
• Size of UQD 04/06/08
• Pressure of manifold assembly 0.5 MPa.
• Coolant pure water or propylene glycol.
• Soft hose EPDM, 500mm.
